Description

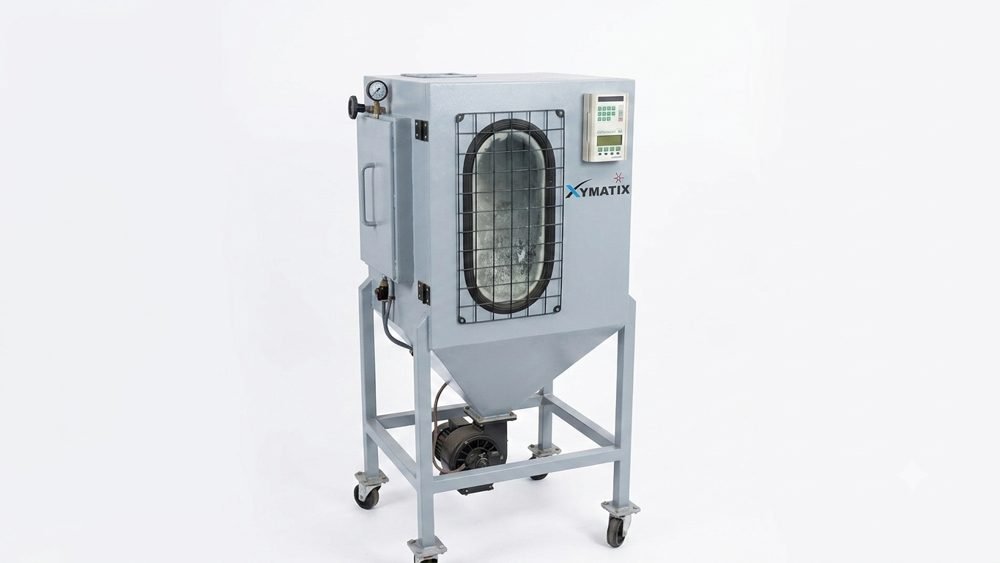

The DC-10T is equipped with a sealed, lockable door and a console for sample mounting, with an entry port on the left wall for supplying the sample during a run. A blower turbine is mounted at the bottom, and a funnel-shaped structure below the sample grid keeps dust from excessively depositing on the walls.
- Microprocessor-controlled, programmable timer.
- Open-gate alarm alerts if the door isn't sealed during a run.
- Sealed-type chamber construction.
- Seven-segment / LCD display.
Technical Specifications
| # | Specification | Value |
|---|---|---|
| 1 | Timer | Programmable (1 min – 10 hours) |
| 2 | Dust Circulation System | Blower type |
| 3 | Overload Protection | Yes |
| 4 | Open Door Indication | Yes |
| 5 | Power Supply | 230V ±10%, 50(60)Hz ±2Hz |
| 6 | Weight | ~50 kg |
