Description

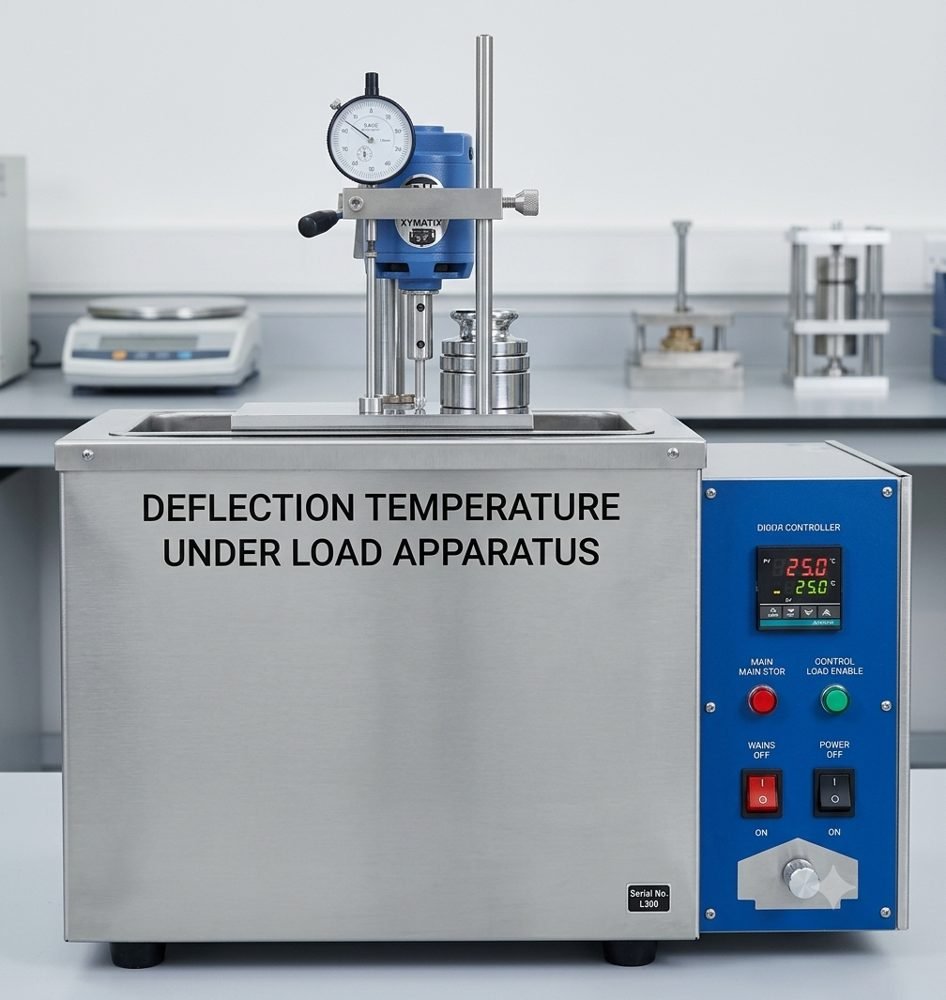

The specimen sits on two parallel metal supports, rounded at the edges and fixed 100mm apart on an overhanging frame. Load is applied midway between the supports through a vertical rod, guided by a metallic sleeve so it moves without rotating.
The immersion bath is double-walled — stainless steel inner wall, mild steel outer wall, with glass wool insulation between them. An immersion heater raises the bath temperature under electronic voltage-regulator control, with a digital controller capping the maximum bath temperature. Specimen deflection is read directly off a dial gauge.
- All parts share the same coefficient of linear expansion, so the rig itself doesn't skew the reading.
- Digital temperature controller restricts maximum bath temperature.
- Dead weight is adjustable to set the applied force precisely.
Technical Specifications
| # | Specification | Value |
|---|---|---|
| 1 | Max Temperature | 300°C generally (160°C with silicone-based or fluorinated oil) |
| 2 | Rate of Rise of Temperature | 2°C / minute (adjustable) |
| 3 | Distance Between Supports | 100mm |
| 4 | Radius of Supports | 3mm |
| 5 | Dead Weight | Adjustable for 1.8 N/mm² force |
| 6 | Deflection Indicator | Dial gauge |
| 7 | Insulation Type | Double jacket glass wool |
| 8 | Thermometer | Digital programmable, accuracy ±1% |
| 9 | Power Supply | 230V ±10%, 50(60)Hz ±2Hz |
| 10 | Weight | ~10 kg |
