Description

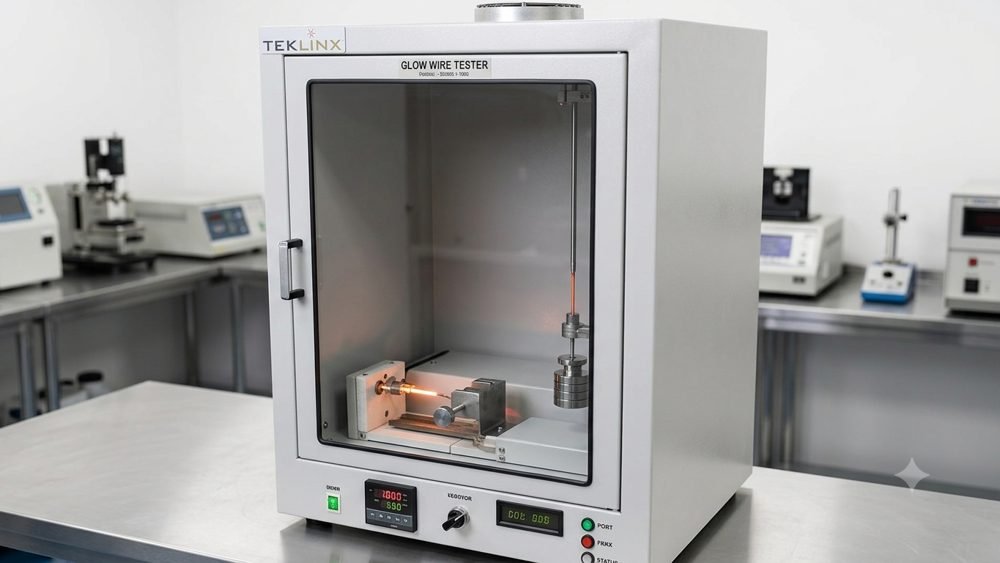

As is usually the case with flammability tests, repeatable results aren't easy to get. The GW-1000 / GW-1000A was designed specifically to improve repeatability and ease of operation.
- Microprocessor-controlled timer, starting a 30-second count the moment the sample contacts the wire loop.
- Ni/Cr (80:20) wire loop, 4mm diameter, shaped to standard.
- Precise temperature adjustment with a Type K (class 1, IEC 60584-2) thermocouple.
- Quick-response thermometer with ambient temperature compensation.
- Adjustable penetration limiter with a scaled slider for reading penetration depth.
Technical Specifications
| # | Specification | Value |
|---|---|---|
| 1 | Power Supply | 230V ±10%, 50(60)Hz ±2Hz |
| 2 | Temperature | 10°C–1000°C (adjustable) |
| 3 | Timer | 30 sec contact timer |
| 4 | Thermocouple | Ni-Cr-Ni Type K, Ø0.5, 1150°C |
| 5 | Thermometer | Digital programmable, accuracy ±1% |
| 6 | Heating Transformer | 500VA, secondary winding 2.5V, 250A |
