Description

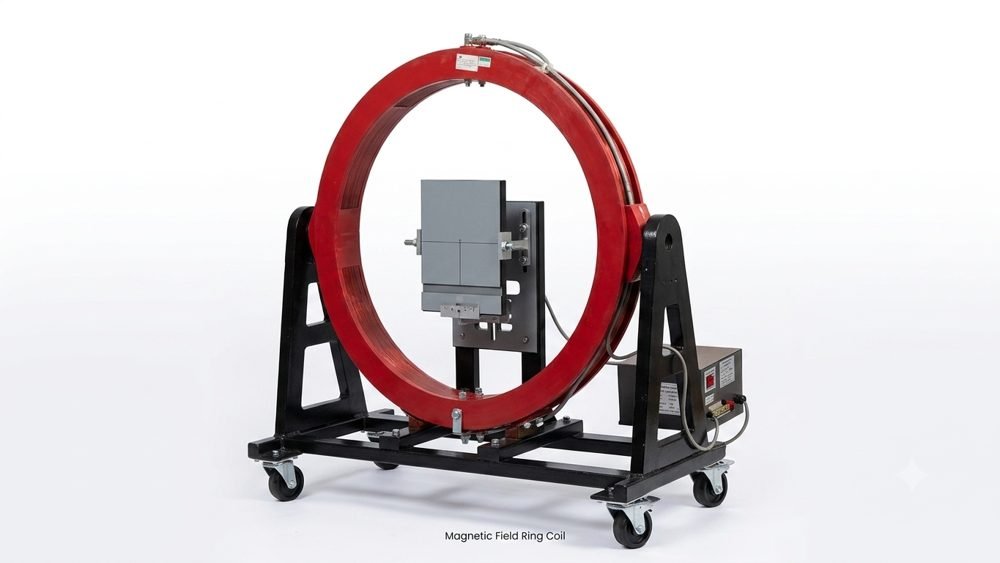

The RC-400AT generates a magnetic field around an EUT positioned at its center, using a coil built entirely from non-magnetic material so it doesn't distort its own field.
- 360° rotation lets you test EUT orientation sensitivity without repositioning the EUT itself.
- Structure built from non-magnetic material throughout.
- Isolated EUT placement stand at the coil's center.
- Excited by a built-in AC source with adjustable current.
Technical Specifications
| # | Specification | Value |
|---|---|---|
| 1 | No. of Turns on Coil | 100 Turns |
| 2 | Excitation Current | 4A AC (adjustable) |
| 3 | Magnetic Field | 0.5 milli Tesla |
| 4 | Coil Diameter | 1 meter |
| 5 | Power Supply | 230V ±10%, 50(60)Hz ±2Hz |
| 6 | Weight | ~50 kg |
