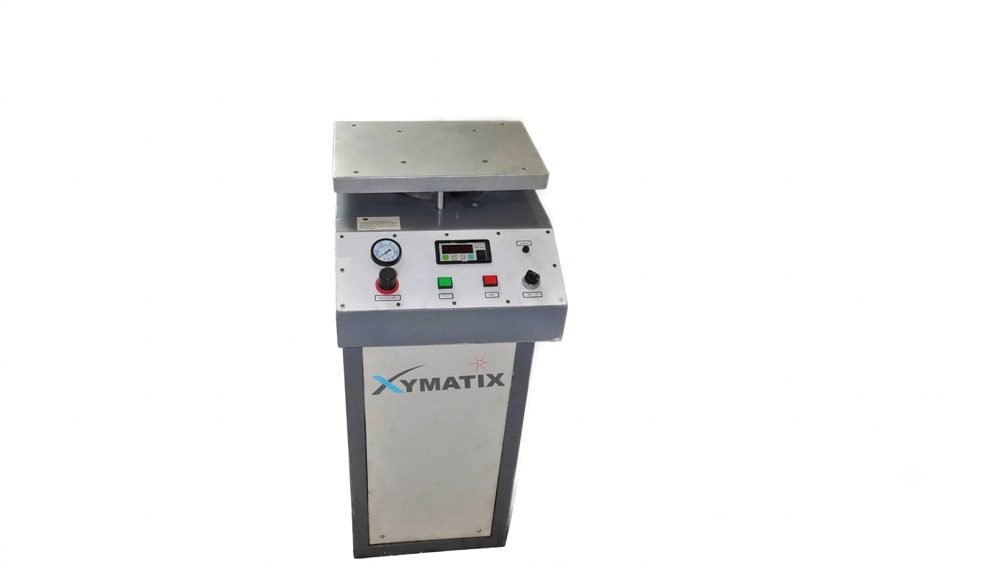

Mechanical Shock Tester SKT-10
Mechanical Test Equipment

Shock Tester (Mechanical)

Model SKT-10 — a microprocessor-controlled, pneumatically powered shock machine for light-weight specimens, ideally suited for energy meter testing.

Max 6kg specimen Up to 5 cycles/min Fully portable

Description

The SKT-10 is fully portable and doesn't require bolting or fixing to a bench — set it down and it's ready to run.

  • Pneumatically controlled shock system for consistent, repeatable impacts.
  • Microprocessor-controlled cycling and timing.
  • 300mm × 300mm carriage surface.

Technical Specifications

#SpecificationValue
1Carriage Surface300mm x 300mm
2Specimen WeightMax 6 kg
3Carriage StrokeMax 250mm
4Cycling RateUp to 5 / minute
5Air Pressure Required100 PSI
6Power Supply230V ±10%, 50(60)Hz ±2Hz
7Weight~50 kg
