Description

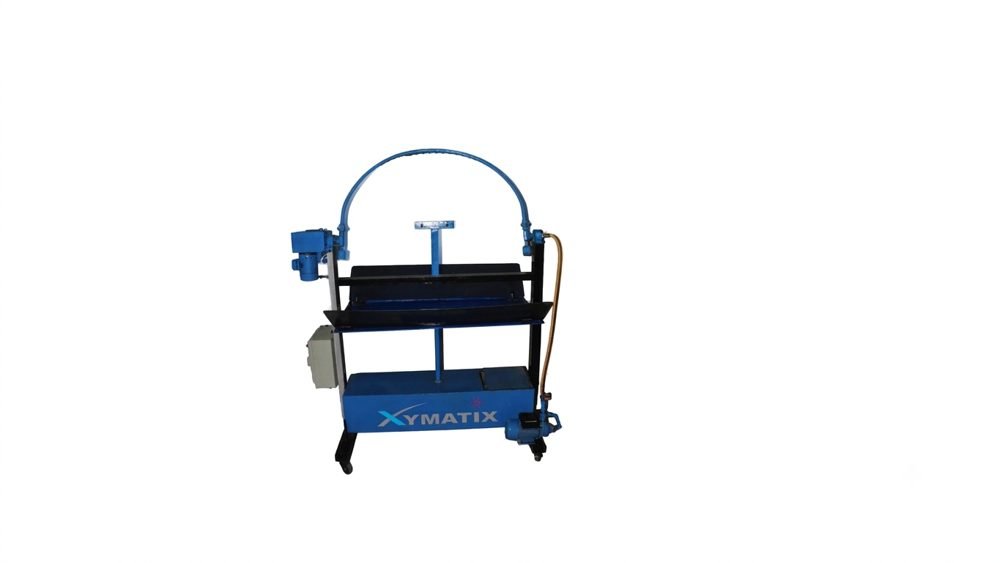

Built around a rugged structure with a self-contained water tank, the SRF-10T simulates rainfall at an adjustable angle for enclosure ingress testing.
- Adjustable control of shower angle, ±45°.
- Motorized swing mechanism for the shower arm.
- Water collection system reuses water instead of wasting it each run.
- Programmable timer, from 1 minute up to 10 hours.
Technical Specifications
| # | Specification | Value |
|---|---|---|
| 1 | Shower Diameter | 1 meter |
| 2 | Swing Angle of Shower | ±45° |
| 3 | Swing Mechanism | Motorized |
| 4 | Water Fall/Flow Control | Yes |
| 5 | Timer | Programmable (1 min – 10 hours) |
| 6 | Tank Capacity | ~60 Liter |
| 7 | Power Supply | 230(120)V ±10%, 50(60)Hz ±2Hz (other optional) |
| 8 | Weight | ~60 kg |
